Secware Posted March 2, 2020 Share Posted March 2, 2020 Well, the Honeywell ADE Informa speech dialler I bought is to replace the current AD2000 speech dialler that is not working any longer. The speech dialler is to be connected to an Ademco 4204 relais module (with 4 relais) which in turn is getting its pulses from a Honeywell Vista 50P alarm system. So, basically, when there is an alarm in one of the 3 partitions I have in the alarm system (the Vista 50P), this triggers one of the relais in the Ademco 4204 which in turn triggers the speech dialler which then calls the phone of the home owner. The problem is that the current AD2000 speech dialler is connected to the Ademco 4204 relais with two wires each while the Honeywell ADE Informa which I bought from you only has one port for one wire per partition. The instruction manual which is provided with the ADE Informa is too short and does not provide enough detail to know how I am to connect the two wires from the Ademco 4204 relais to the Honeywell ADE Informa. Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 2, 2020 Share Posted March 2, 2020 as its relay based id assume you have Normally open and common connections. You need to connect the commons to 0v and the Normally opens to the relevant triggers Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 2, 2020 Share Posted March 2, 2020 OK, but how do I know what the 0V is? In the instruction manual, there is only mention of four inputs: IP1, IP2 and IP3 (each one with one wire, for three partitions) and then a fourth one which is INH (the INH input does not inhibit alarms from IP1 but cancels the Follow Me number whenever the panel is unset). So, I don't see a 0V. Thanks for your further help! Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 2, 2020 Share Posted March 2, 2020 You have a 12v and a 0v supply connection. The dialler is expecting a 0v trigger Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 3, 2020 Share Posted March 3, 2020 OK, can you please indicate which port that is using the figures of the manual of the Informa speech dialler? Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 3, 2020 Share Posted March 3, 2020 They input requires 0v to trigger. As above connect one side of the relay to 0v (usually common) then connect the other to the required input. Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 3, 2020 Share Posted March 3, 2020 OK, can you please indicate which port that is using the figures of the manual of the Informa speech dialler? There is in the instruction manual no clear mention of 0V in the text nor in the figures. Please advise. Thanks! Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 3, 2020 Share Posted March 3, 2020 this is part of the instruction manual Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 3, 2020 Share Posted March 3, 2020 The manual is assuming you are wiring to a transister output. As you are using relays thus is not in the manual. The input just requires a switched 0v. You can try this by using a short piece of wire and brrifly connecting from 0v to Input 1 if programmed correctly this will cause the unit to dial Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 4, 2020 Share Posted March 4, 2020 Dear support, I propose that we call about this because it is difficult to get this clarified via a forum. My telephone number is +31 642 808 478. Alternatively, I can also call you. From your explanation, it is not clear to me where the 0v is and where the input 1 is. I don't have that on the figures in the installation manual. So please let's have a call on this. Quote Link to comment Share on other sites More sharing options...

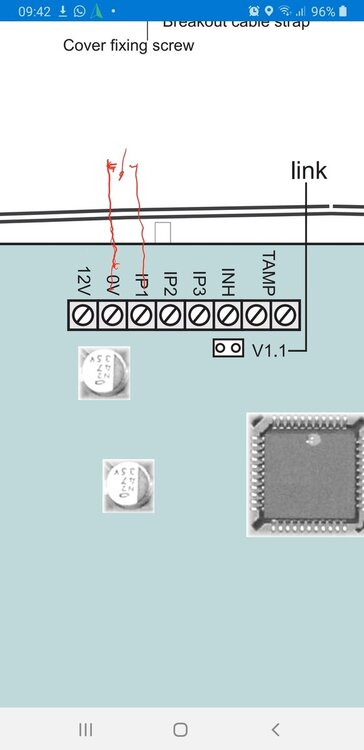

Secware_Tech6 Posted March 4, 2020 Share Posted March 4, 2020 I have attached an image Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 4, 2020 Share Posted March 4, 2020 The left relay is common the right connection normally open Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 5, 2020 Share Posted March 5, 2020 Super, thanks! A picture says more than a 1000 words. I'll give this a try. Thanks a million!! On 3/3/2020 at 9:55 AM, Brichau said: OK, can you please indicate which port that is using the figures of the manual of the Informa speech dialler? There is in the instruction manual no clear mention of 0V in the text nor in the figures. Please advise. Thanks! Quote Link to comment Share on other sites More sharing options...
Brichau Posted March 5, 2020 Share Posted March 5, 2020 Thanks so much for the picture, as the saying goes: a picture says more than a thousand words. Thanks a million!! Quote Link to comment Share on other sites More sharing options...
Secware_Tech6 Posted March 5, 2020 Share Posted March 5, 2020 Let us know how you get on Quote Link to comment Share on other sites More sharing options...
